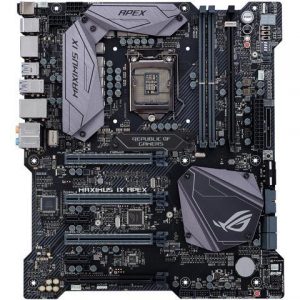

EATX - 12 × 13 in - (305 × 330 mm)

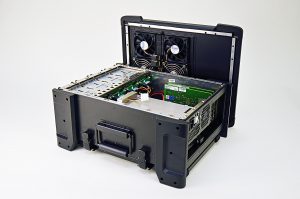

Cooling is an important requirement for high-performance computing. Overclockers looking to extract maximum performance from a chip will go to extraordinary lengths to cool the processor using liquid nitrogen or massive external refrigeration units. In a rugged portable, it's usually just a case of optimizing air-flow and making sure the hot components aren't blocked. Tidy cable management helps smooth the airflow which helps cooling and the audio profile. All of the work that was done on keeping Hard Drives cool is not wasted as it applies nearly as much to SSDs. SSDs generate a significant amount of heat when used - especially when writing.

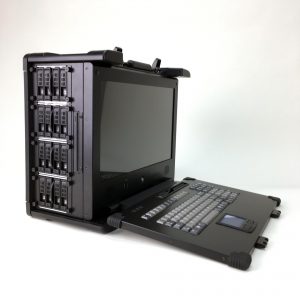

Military applications almost always require removable hard drives for both data and the operating system. These can be individual drives or removable caddies that reduce the risks of mixing up the drives in a RAID array - which can be a costly time sink to fix, if not worse.
Expansion cards range from top of the line graphics cards to multi-I/O serial cards. Connections via 1553, 1394B (as used on the Lockheed Martin F-35), CAN bus, Infiniband, HyperSCSI, NAS, SAN, and many others are possible with adaptors from multiple manufacturers.
Examples of interface cards often used:
1553

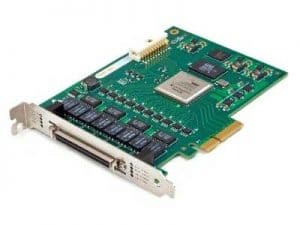

Abaco systems 1553
Abaco Systems RPCIE-1553 is the latest generation of performance and flexibility for MIL-STD-1553 A/B Notice II on a native PCI Express module. Available in -40°C to +70°C temperature with one, two or four dual-redundant channels, the RPCIE-1553 includes advanced API (Application Programming Interface) software that reduces application development time.
1394B

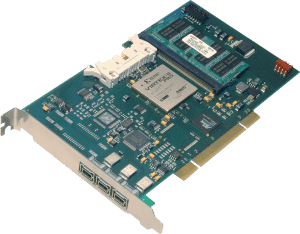

DAP Technology Firespy cards 1394 (PCI)
The FireSpy850, FireSpy450b, and FireSpy450bT bus analyzers complete the second generation of 1394 analyzers offered by DapTechnology. Based on the industry-leading FireSpy800, the all new and enhanced architecture of the FireSpy810, as well as the form factor advantages introduced with the FireSpy3850, make these PCI form factor analyzer cards the most compelling package for card-based 1394 analysis solutions found in the industry.

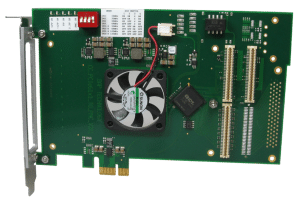

Dap also makes similar cards in PMC format - these then need an adaptor card like this:
CAN

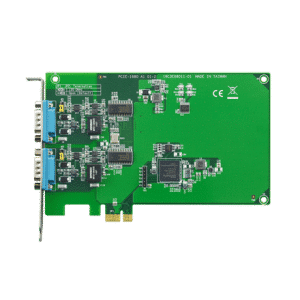

Advantach PCIE-1680
2-Port CAN-Bus PCI-E card with Isolation Protection
- High-speed transmission up to 1 Mbps
- Operates two separate CAN networks at the same time
- Optical isolation protection of 2,500 VDC ensures system reliability
- 16 MHz CAN controller frequency
Infiniband

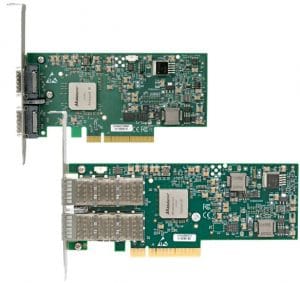

Melinox
ConnectX® - Single/Dual-Port InfiniBand Adapter Cards with PCI Express 2.0
ConnectX delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications. These applications will benefit from the reliable transport connections and advanced multicast support offered by ConnectX. No CPU intervention is required when Network protocol processing and data movement overhead (such as InfiniBand RDMA and Send/Receive semantics) are completed in the adapter. Servers supporting PCI Express 2.0 with 5GT/s will be able to take advantage of 40Gb/s InfiniBand, balancing the I/O requirement of these high-end servers.
NAS

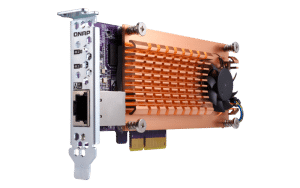

QNAP - QM2
QM2 series PCIe cards add support for M.2 SSDs and 10GbE RJ45 connectivity to a QNAP NAS. Combining M.2 SSD and 10GbE connectivity into one solution, the QM2 helps improve overall NAS performance while providing an affordable upgrade path for adopting 10GbE networks.

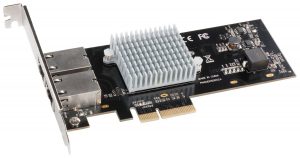

SAN - Sonnet
Sonnet’s Presto™ 10GbE 10GBASE-T PCIe 3.0 card is a powerfully simple and cost-effective way to add dual-port copper 10GbE connectivity to your Mac Pro® tower or Windows® PC, or Linux® server.
Multi-port Ethernet

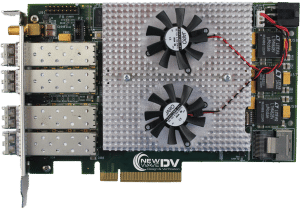

CaptureXG™ 1000 Quad-Port 10 Gigabit Ethernet Capture PCI Express FPGA Card
The CaptureXG 1000 card comes standard with essential features, such as accurate time synchronization and stamping (IRIG-A, B, and G), programmable 5-tuple filters, PCAP Next Generation file format, and a highly efficient PCI Express Gen 3 host interface. The CaptureXG 1000 card is fully integrated with the popular Wireshark network protocol analyzer, so it provides a powerful tool for IT managers to easily leverage their teams’ existing expertise, which increases efficiency in diagnosing network issues.

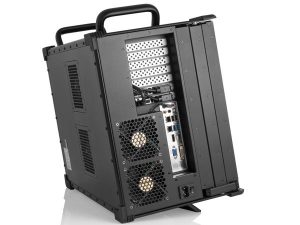

For a selection of portable computers with expansion slots that are designed to support PCIe cards - please visit Portexa.com
