Three screen training computer

Myles KelvinBlog

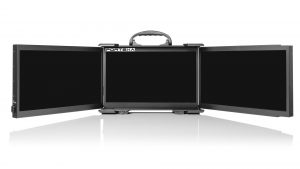

Three Screen Portable Training Computer These days, the ability to play video, run training scripts and collect student responses does not need an uber-pc. If we are honest there is probably performance enough in your phone. But the display size and supervisory management of a phone make it impractical for use as a teaching or training aid. Now there is a triple screen portable (not a laptop, but not *that much bigger*), with enough performance to be a great training computer. It's made for Port
Three screen training computer
[embed height="315" width="560"]https://youtu.be/E6YHWrotkvQ[/embed]

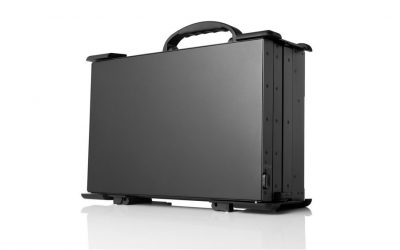

Designed to be a pleasure to use, while still being robust and reliable, the BCCD-C (Bi-Fold Command and Control Display)-Computer is a medium power, high utility computer system.

Functionally similar to many desktop PC's the BCCD-C provides three HD widescreen displays in a compact package.  It is perfect for general use or a training system which requires compact dimensions and a robust package.

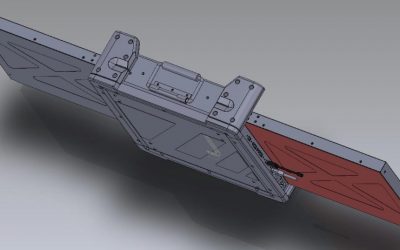

The video above shows the display only version of the BCCD.  The computer version is the same size but has computer i/o where the video inputs are on the side of the unit.

  Specifications:
Intel Core i3-6100T Processor (3.2GHz, 3MB cache, 2 Cores)
Intel HD Graphics 530
8GB RAM
500GB 7200 RPM 2.5" HDD in removable cannister
Desktop keyboard and mouse
3 x 17.3", 16:9 displays
1920 x 1080 resolution
Brightness: 300 Nits
Contrast: 500:1
Color: 262K (dependent on display input and graphics card)
Backlight MTBF: 10,000H (25C+/-5C)
Power: 90W, 100-240VAC, 50/60Hz
Dimensions: 12.37" x 17.14" x 6.21" (H x W x D)  (47.61"W - fully open)
Weight:  26 lbs appx
Operating Temperature: 0-50C (32F-122F)
